Product Description
Product Spec Sheet :

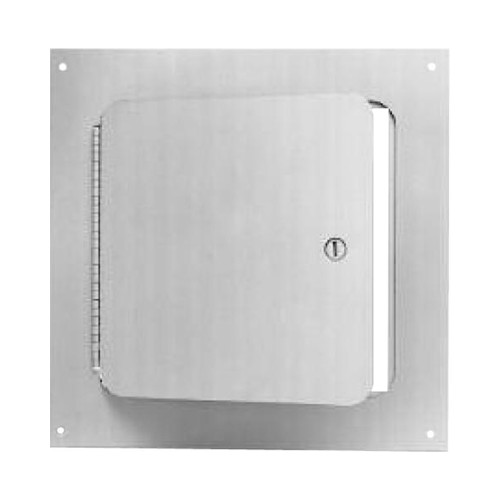

18" x 18" Surface-Mounted Panel Access Door
Our WB-SMP Surface-Mounted Panel Access Door is the solution in all types of walls and ceilings.
Made in Canada, this WB-SMP is ideal when access is a requirement without a framed opening. It is a door face only and requires absolutely no framing or recess. It comes with a laser-cut frame from one sheet of steel for visual aesthetics, and a door that’s mounted through the surface with four laser-cut mounting holes on the corner of each frame that is standard.
Other features of this model include 16 ga. door stops on 3 sides of the door opening, a full-length piano hinge that allows the door to be opened to 180º and will be placed on the long side of the door unless otherwise requested, and a white paintable coat finish.
Finish : White powder coat paintable
Flange : 1 ½" flange
Hinge : Full length piano hinge allows door to open to 180°
Lock / latch : 3 x Stainless steel flush cam latch
Material : 14 gauge steel door
Rough Opening Size : To Suit Door Panel Size
