Product Description
Product Spec Sheet :

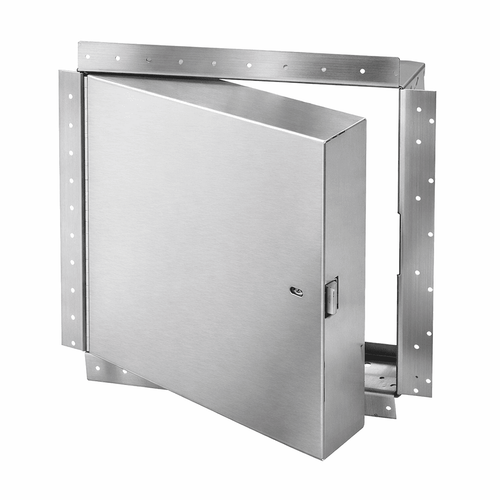

32" x 32" ADC-PFI-GYP-SS Fire-Rated Insulated Drywall Door - SS - Cendrex
Introducing the 32" x 32" ADC-PFI-GYP-SS Fire-Rated Insulated Drywall Door - SS – your solution for a secure and reliable commercial construction!
When it comes to hanging drywall, there are no shortcuts. Ensuring a beautiful, seamless finished product requires attention to detail, patience, and focus. The ADC-PFI-GYP-SS Fire-Rated Insulated Drywall Door - SS, exclusively designed for fire-rated walls, streamlines your drywall hanging process for maximum efficiency. This model offers a practical solution for applications that demand a germ-free, sanitized environment, such as labs, food processing plants, operating theaters, and clean rooms.
Why Choose ADC-PFI-GYP-SS?
- Simplified Mudding Process: The ADC-PFI-GYP-SS's exposed flanges are perforated (beaded) to accept tape and drywall mudding compound, ensuring easier adhesion, precision placement, and a polished finish.
- Durable Design: Constructed of durable 16 and 20-gauge stainless steel, the ADC-PFI-GYP-SS forms a robust and rust-resistant unit with minimal maintenance requirements.
- Fire-Rated: Achieving a fire rating of up to 2 hours on rated vertical wall assemblies, the ADC-PFI-GYP-SS is certified to U.L. standards, ensuring safety and compliance.
- Self-Latching: Maintaining a spring mechanism, the ADC-PFI-GYP-SS ensures hands-free and hassle-free operation, meeting NFPA 80 standards.
- Installation Control: Designed to be installed during your drywall installation process, the ADC-PFI-GYP-SS provides greater control over exposed joints. The flanges also serve as a guide when installing within existing structures.
- Concealed Finish: With perforated outer flanges, you can expect a virtually invisible finish, with only the panel door exposed once fully installed.
- Thermal Insulation: Equipped with mineral wool insulation, the ADC-PFI-GYP-SS enhances the thermal properties of your application while contributing to its fire rating.
- LEED V4 Credits: This access door aids in obtaining LEED certification, tax credits, and benefits eligibility, contributing to sustainable building practices.
Specifications:
- Dimensions: 32" x 32"
- Installation: Walls and ceilings
- Material: 20-gauge stainless steel door and 16-gauge stainless steel frame
- Hinge: Continuous piano hinge.
- Locking Mechanism: Self-latching tool-key operated slam latch and ring operated slam latch, both included.
- Flange: 1" exposed flange
- Frame: 2½ " in depth, made of stainless steel
- Insulation: 2" thick fire rated mineral wool
- Inside Panel Release: Mechanisms to allow panels to open from inside, standard on all doors over 12" X 12 inches.
- Finish: High-quality white powder coat primer
Ready to Order?
Request a quote from us today! Access Doors Canada offers quality access solutions directly to the site. Get in touch with our team at (800) 679-3405.
