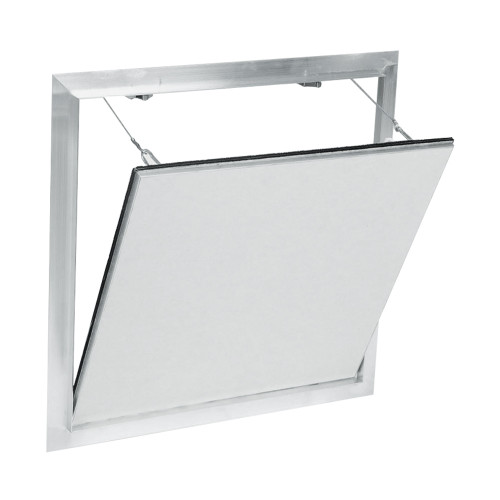

16" x 16" Drywall Inlay Access Panel with detachable hatch
F2AKL - Aluminum frame, with drywall insert, for ceilings, drywall, and various applications
The access panel consists of a welded aluminium frame and is available with or without 1/2" (12.7 mm) or 5/8" (15.9 mm) inlayed drywall and two latches (comes standard with inlay and touch latches).
Both an outer and an inner frame assembly consists of high grade aluminium which is bonded with a special welding process. For sizes 12" x 12" (305 mm x 305 mm) and up the access panels are equipped with a safety-system to prevent accidental opening. This safety system must be reattached if the hatch is removed.
The reveal of 1/16 of an inch (1.59 mm) is visible between the outer frame and door hatch. The concealed snap locks open the access panel when pressure is applied to the spring-loaded latch side.
This access panel is designed to limit the amount of air/dust leaving the room.
- Superior engineering & innovative design
- Fast delivery
- Quick and easy installation
- Solid aluminum frame
- Flush installation in ceilings and walls
- Available in moisture resistant, mildew resistant and cement board
Customized sizes can be produced in every dimension upon request. (Request a Quote)
Door Size: 20" wide by 30" high
Finish: Galvanized Steel
Flange: 22 gauge expansion casing bead with metal lath
Hinge: Concealed continuous piano hinge
Lock / latch: 5 x Screwdriver Operated Latch with Stainless Steel Cam
Material: 16 gauge galvanized steel
Product Spec Sheet https://accessdoorscanada.ca/content/specs/ADC-F2AKL.pdf
Door Size 16 wide x 16 high
Rough Opening Size NA
Brand FF Systems
