Product Description
Product Spec Sheet :

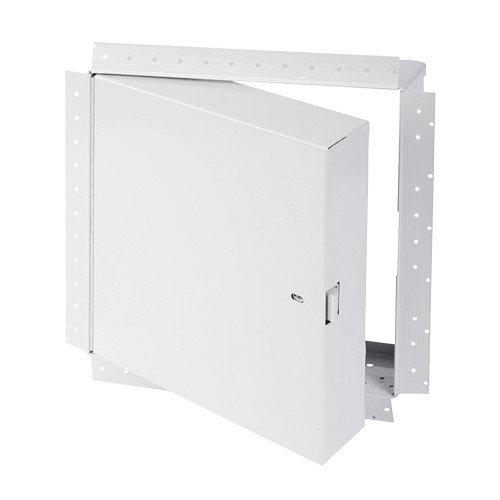

22" x 22" - Fire Rated Insulated Access Door with Drywall Flange - Cendrex
The PFI-GYP is specially designed to be installed on fire rated drywall covered ceilings and walls. Once a sufficient layer of drywall compound is applied to its corner bead flange, it will leave only the door panel visible for a more aesthetic look. Once the installation is complete and the provided springs are hooked to the back of the panel, this door will be self closing and self locking thus meeting fire certification standards. The largest fire rated PFI-GYP doors available for vertical and horizontal installations are respectively: (48" x 48") and (24" x 36" or 864 sq inches).
Custom Fields
Door Size: 22" wide x 22" high
Finish: High Quality White Powder Coat
Flange: 1 ?" drywall corner bead flange
Hinge: Continuous piano hinge
Lock / latch: 1 x Self latching tool-key operated latch and/or ring operated latch, both included
Material: 16 gauge cold rolled steel frame and 20 gauge galvanneal steel door
Rough Opening Size: 22 ¼" wide x 22 ¼" high
