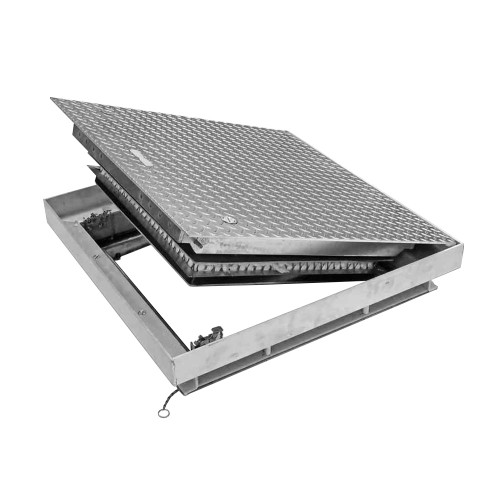

30" x 36" ADC-FRFD Fire-Rated Floor Hatch - Acudor

If a fire is in a multi-level building, an inadequately designed floor hatch can allow flames and smoke to spread, jeopardizing lives, and violating building codes. The 30" x 36" ADC-FRFD Fire-Rated Floor Hatch - Acudor hatch provides essential two-hour fire protection, serving as a barrier between fire and occupants while allowing safe access.

The ADC-FRFD is designed to keep two-hour-rated floor and ceiling systems. Tested by Warnock Hersey International to NFPA 288 and ASTM E 119 standards.

Constructed from ¼" aluminum diamond plate, it can support 150 lbs. per square foot, making it suitable for foot traffic. It features two 1" layers of ceramic blanket insulation for excellent fire resistance. The aluminum top frame has a thermal break, while the durable 11-gauge stainless steel bottom frame enhances stability.

Equipped with a Type 316 stainless steel continuous piano hinge, the hatch opens to 390 degrees. It includes a U.L.-listed 165° fusible link that closes the door and secures it with a stainless-steel slam latch during a fire, restoring the fire barrier.

Why Should You Use the 30" x 36" ADC-FRFD Fire-Rated Floor Hatch - Acudor?

• Fire Compliance Features: This door is rated for two hours of fire resistance by Warnock Hersey International and meets NFPA 288 and ASTM E 119 standards.
• Automatic Closure: It features a U.L. listed 165°F fusible link that triggers automatic closure with a stainless-steel slam latch during a fire, restoring the fire barrier.
• Sturdy and Durable Design: Constructed from 4¼" aluminum diamond plate, this door supports a load of up to 150 lbs. per square foot, ensuring reliability in high-traffic areas.
• Easy Manual Access: Equipped with stainless steel compression springs and an automatic hold-open arm with a bright red vinyl grip, the door opens and stays at a 90° angle for convenient access.
• Excellent Fire and Thermal Barrier: Designed with two layers of 1" thick ceramic blanket insulation and a thermal break aluminum frame to cut heat transfer and improve energy efficiency.

Protect your project's budget! Get a fixed price for your sizes and quantities today to avoid fluctuating material costs. Request a personalized quote now and secure your project's financial future!

Product Specification

• Dimension: 30" x 36"
• Rating: Warnock Hersey International 2-hour fire rating.
• Testing: Tested for NFPA 288 and ASTM E 119.1.
• Application: Designed for interior applications to keep the fire rating of a 2-hour floor ceiling assembly.
• Door Material: 3¼" aluminum diamond plate.
• Door Reinforcement: Reinforced to support a live load of 150 lb. per sq. ft.
• Top Frame Material: 5" x 3" x ¼" aluminum with a thermal break.
• Bottom Frame Material: 3½" x 2" x 11-gauge stainless steel.
• Hinges & Hardware: Type 316 stainless steel continuous piano hinge.
• Insulation: Two layers of 1" thick ceramic blanket insulation attached to the bottom frame.
• Opening Device: The door opens to 90° and is helped by stainless steel compression springs for easy lifting. An automatic hold-open arm with a red vinyl grip ensures the door stays open, providing safe access and egress.
• Automatic Fire Closure: A U.L. listed 165° fusible link is included to trigger the closing and latching of the door in case of smoke or fire, restoring the fire barrier.
• Latch: Stainless steel slam latch assembly with interior release.

Ensure compliance with the 30" x 36" ADC-FRFD Fire-Rated Floor Hatch - Acudor! It offers 2-hour fire protection and an automatic sealing mechanism for secure access.
