Product Description
Product Spec Sheet :

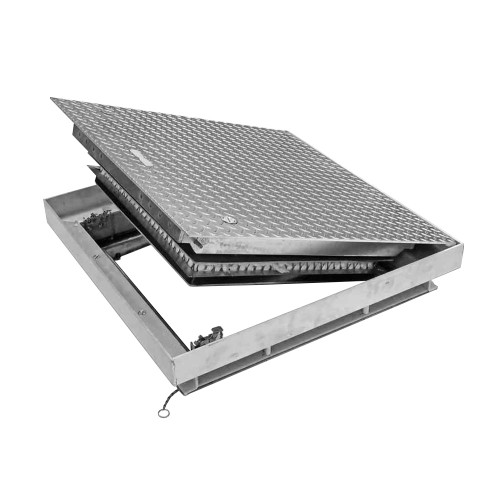

48" x 48" Fire Rated Floor Hatch - Acudor
The FRFD series fire rated floor doors are designed to maintain the fire rating of a 2 hour floor ceiling assembly in interior applications.The angle frame construction with Anchor flange is designed to be cast into concrete.The flush aluminum diamond plate cover is provided with a U.L. listed 165 degree fusible link for automatic closing and latching in the event of smoke or fire.
Custom Fields
Door Size: 48" wide x 48" high
Finish: Mill Finish
Flange: 3"x 3"x 1/4" aluminum top frame with thermal break 3 1/2"x 2"x 11 gauge stainless steel bottom frame
Hinge: Type 316 stainless steel continuous piano hinge
Lock / latch: Stainless steel slam latch assembly with interior release
Material: Aluminum door & top frame ; Stainless steel bottom frame, hinges & hardware
Rough Opening Size: N/A
