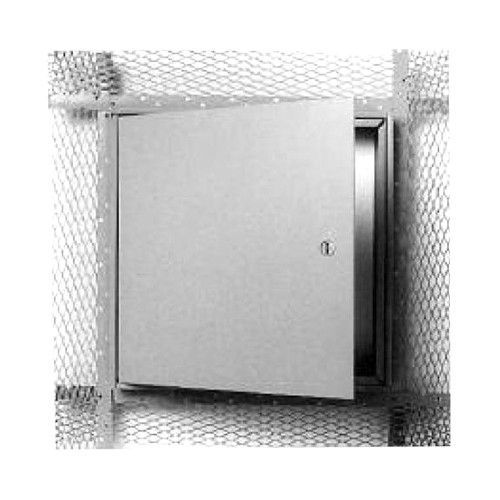

10" x 10" Plaster Access Door
The WB-PL Plaster Access Door made in Canada is a flush door suitable for wall and ceiling applications. This door features a tape-in plaster bead that allows for plaster mud to be applied to the flange concealing the same. It also has a 16 gauge steel door, a box return frame constructed with 16 gauge steel, 3” wide plaster mesh flange of 24 gauge galvanized material. It also has a space from the expanded flange to the ¼” safety edge of the door to accommodate 1” of plaster and a fully-concealed off-set hinge up to 24”x24”. Moreover, the number of hinges varies with the size of the door. The WB-PL Plaster Access Door also has a white powder coat paintable finish and ¼” safety edge giving the door a strong frame and preventing the plaster from being chipped under normal use.
Flange : 3" wide 24 gauge galvanized steel mesh flange
Hinge : Fully-concealed hinge
Lock / latch : Flush, stainless steel cam operated with screwdriver
Material : 16 ga. cold rolled steel, 16 ga. steel frame
Rough Opening Size: 10 ¼" wide x 10 ¼" high
